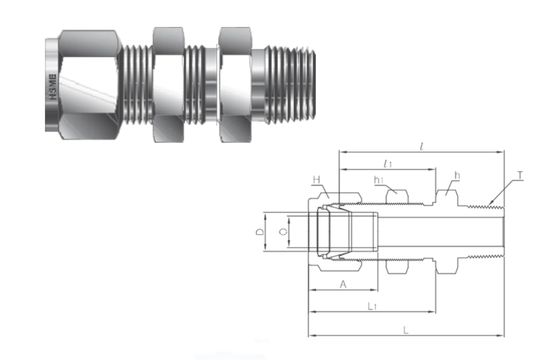

Bulkhead Male NPT Connector
CONNECTS FRACTIONAL TUBE TO FEMALE NPT THREAD (AMCB SERIES)
| Part No. |
Tube O.D. (in) |
Tube O.D. (mm) |
NPT (in) |
D (mm) |
T (mm) |
O Min. (mm) |
Width Across Flat A (mm) |
Length (mm) |
Panel Hole Drill (mm) |
Panel Max Thickness (mm) |
| l |
l1 |
L |
L1 |
| AMCB2-2N |
1/8 |
3.17 |
1/8 |
2.28 |
12.70 |
12.70 |
11.11 |
12.70 |
24.63 |
46.48 |
31.24 |
8.33 |
12.70 |
| AMCB4-2N |
1/4 |
6.35 |
1/8 |
4.82 |
15.87 |
15.87 |
14.28 |
15.24 |
26.16 |
49.53 |
33.52 |
11.50 |
10.16 |
| AMCB4-4N |
1/4 |
6.35 |
1/4 |
4.82 |
15.87 |
15.87 |
14.28 |
15.24 |
26.16 |
53.34 |
33.52 |
11.50 |
10.16 |
| AMCB6-4N |
3/8 |
9.52 |
1/4 |
7.11 |
19.05 |
19.05 |
17.46 |
16.76 |
29.46 |
57.40 |
36.83 |
14.68 |
11.17 |
| AMCB6-6N |
3/8 |
9.52 |
3/8 |
7.11 |
19.05 |
19.05 |
17.46 |
16.76 |
29.46 |
57.40 |
36.83 |
14.68 |
11.17 |
| AMCB6-8N |
3/8 |
9.52 |
1/2 |
7.11 |
22.22 |
19.05 |
17.46 |
16.76 |
29.46 |
63.75 |
36.83 |
14.68 |
11.17 |
| AMCB8-6N |
1/2 |
12.70 |
3/8 |
9.39 |
23.81 |
23.81 |
22.22 |
22.86 |
31.75 |
63.24 |
41.91 |
19.44 |
12.70 |
| AMCB8-8N |
1/2 |
12.70 |
1/2 |
10.41 |
23.81 |
23.81 |
22.22 |
22.86 |
31.75 |
68.83 |
41.91 |
19.44 |
12.70 |
| AMCB12-12N |
3/4 |
19.05 |
3/4 |
15.74 |
30.16 |
30.16 |
28.58 |
24.38 |
37.33 |
76.20 |
47.49 |
25.76 |
16.76 |
| AMCB16-16N |
1 |
25.40 |
1 |
22.35 |
41.28 |
41.28 |
38.10 |
31.24 |
45.21 |
93.21 |
57.40 |
33.73 |
19.05 |
| AMCB20-20N |
1-1/4 |
31.75 |
1-1/4 |
27.68 |
47.63 |
47.63 |
47.63 |
41.14 |
47.75 |
108.07 |
69.85 |
41.67 |
19.05 |
| AMCB24-24N |
1-1/2 |
38.10 |
1-1/2 |
34.03 |
57.15 |
57.15 |
57.15 |
50.03 |
49.27 |
120.21 |
76.45 |
49.61 |
19.05 |
| AMCB32-32N |
2 |
50.80 |
2 |
45.97 |
69.85 |
69.85 |
76.20 |
67.56 |
56.38 |
144.62 |
93.71 |
16.27 |
19.05 |
