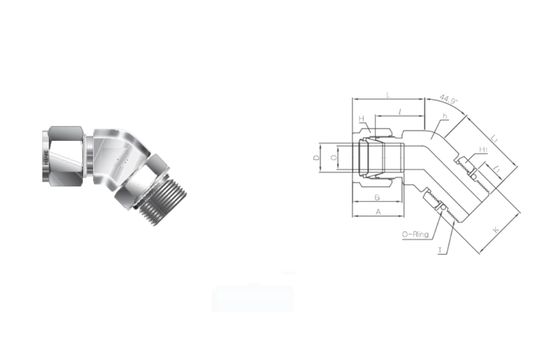

Positionable 45° SAE Male Elbow
CONNECTS FRACTIONAL TUBE TO SAE STRAIGHT THREAD BOSS
| Part No. |
Tube O.D. (in) |
Tube O.D. (mm) |
Straight Thread |
T (U) |
O Min (in) |
O Min (mm) |
A (in) |
A (mm) |
B (in) |
B (mm) |
l (mm) |
l1 (mm) |
L (mm) |
L1 (mm) |
K (mm) |
h (mm) |
H (mm) |
H1 (mm) |
O-Ring Size |
| ALBS 4-4UP |
1/4 |
6.35 |
7/16-20 |
4.82 |
1/2 |
12.70 |
9/16 |
14.28 |
9/16 |
14.28 |
15.24 |
17.78 |
18.28 |
9.90 |
25.65 |
25.65 |
16.51 |
-904 |
| ALBS 6-6UP |
3/8 |
9.52 |
9/16-18 |
7.11 |
5/8 |
15.87 |
11/16 |
17.46 |
11/16 |
17.46 |
16.76 |
19.30 |
20.57 |
11.17 |
27.94 |
28.19 |
20.06 |
-906 |
| ALBS 8-8UP |
1/2 |
12.70 |
3/4-16 |
10.41 |
13/16 |
20.64 |
7/8 |
22.22 |
7/8 |
22.22 |
22.86 |
21.84 |
21.84 |
12.70 |
32.00 |
32.25 |
25.65 |
-908 |
| ALBS12-12UP |
3/4 |
19.05 |
1-1/16-12 |
15.74 |
1-1/8 |
28.58 |
1-1/8 |
28.58 |
1-1/4 |
31.75 |
24.38 |
21.84 |
29.71 |
16.76 |
39.87 |
47.24 |
36.57 |
-912 |
| ALBS16-16UP |
1 |
25.40 |
1-5/16-12 |
22.35 |
1-3/8 |
34.92 |
1-1/2 |
38.10 |
1-1/2 |
38.10 |
31.24 |
26.41 |
35.30 |
16.76 |
47.49 |
50.54 |
43.94 |
-916 |
