Socket Weld Fittings
Socket Weld Fittings are high-pressure, forged pipe fittings designed primarily for small-diameter piping systems (typically up to NPS 2, and commonly used up to 4”). These fittings feature a recessed socket into which the pipe is inserted and secured using a fillet weld, ensuring a strong, durable, and leak-proof connection.
They are widely used in industries where high pressure, reliability, and compact design are critical.
Key Features
- High Strength & Leak-Proof Joints due to fillet welding
- Designed for small bore piping systems
- Easy alignment and installation with socket design
- Suitable for high-pressure applications
- Common pressure ratings: 3000#, 6000#, 9000#
Standards & Materials
Manufactured as per ASME B16.11 standards to ensure dimensional accuracy and performance.
Materials Available
- Carbon Steel (ASTM A105)
- Stainless Steel (SS 304 / SS 316 / 316L)
- Alloy Steel
These materials are selected based on application requirements such as pressure, temperature, and corrosion resistance.
Installation Guidelines
- Pipe is inserted into the socket and welded using a fillet weld
- A 1.5 mm gap (approx. 1/16 inch) is maintained between the pipe end and socket base
- Allows thermal expansion
- Reduces risk of weld cracking
Advantages
- Prevents weld metal from entering pipe bore
- Ensures proper pipe alignment
- High structural integrity
- Ideal for high-pressure, small-size pipelines
- Quick and reliable installation
Limitations
- Crevice corrosion risk due to internal gap
- Not recommended for high-purity applications (food, pharma)
- Difficult to clean internally

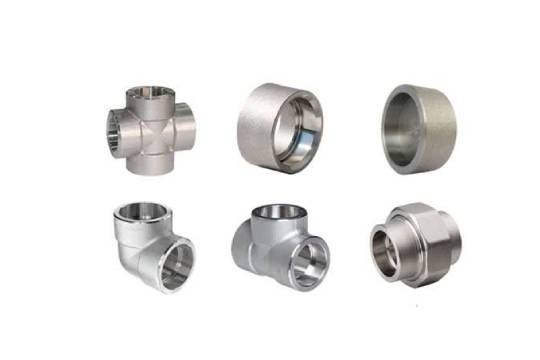

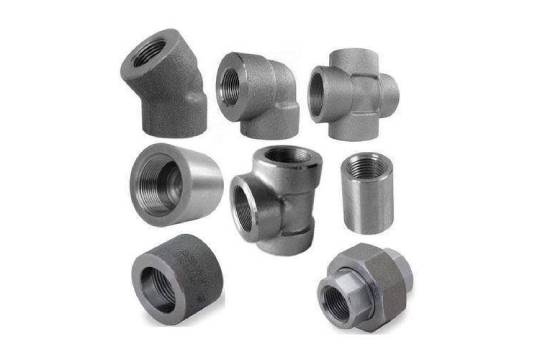

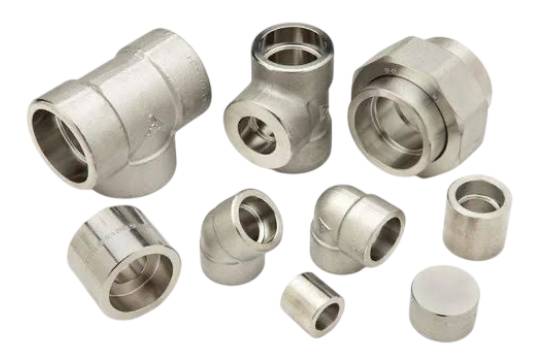

Common Types of Socket Weld Fittings
- Elbows (45° & 90°): Used to change the direction of flow
- Couplings: Connect two pipes (Full & Reducing)
- Tees & Crosses: Used for branching pipelines into multiple directions
- Unions: Allow easy dismantling for maintenance
- Caps: Used to close the end of a pipeline
Applications
- Oil & Gas Industry
- Petrochemical Plants
- Power Generation
- Hydraulic & High-Pressure Systems
- Chemical Processing Units
Why Choose Socket Weld Fittings?
Socket weld fittings offer an excellent balance of strength, reliability, and ease of installation, making them a preferred choice for high-pressure piping systems with smaller diameters.
