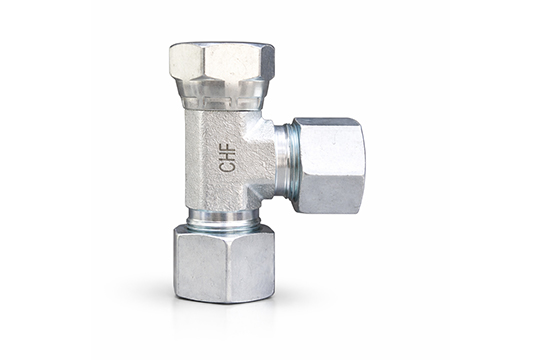

EVL-Standpipe run tee 24 cone end

EVL-Standpipe run tee 24 cone end

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L1 L2 L3 ØD DRILL ØD1 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g M12X1.5-6H 12.00 14.00 19.00 26.00 4.00 3.00 6.00 27.00 XEVL06L EVL06L 315 315
8 M14X1.5-6g M14X1.5-6H 14.00 17.00 21.00 27.00 6.00 4.00 8.00 29.00 XEVL08L EVL08L 315 316
10 M16X1.5-6g M16X1.5-6H 14.00 19.00 22.00 28.50 8.00 6.00 10.00 30.00 XEVL10L EVL10L 315 316
12 M18X1.5-6g M18X1.5-6H 17.00 22.00 24.00 29.00 10.00 7.00 12.00 32.00 XEVL12L EVL12L 315 315
15 M22X1.5-6g M22X1.5-6H 19.00 27.00 28.00 32.00 12.00 10.00 15.00 36.00 XEVL15L EVL15L 315 315
18 M26X1.5-6g M26X1.5-6H 24.00 32.00 31.00 35.00 15.00 13.00 18.00 40.00 XEVL18L EVL18L 315 315
22 M30X2.0-6g M30X2.0-6H 27.00 36.00 35.00 38.00 19.00 16.00 22.00 44.00 XEVL22L EVL22L 160 160
28 M36X2.0-6g M36X2.0-6H 36.00 41.00 38.00 41.50 24.00 22.00 28.00 47.00 XEVL28L EVL28L 160 160
35 M45X2.0-6g M45X2.0-6H 41.00 50.00 45.00 51.00 30.00 28.00 35.00 56.00 XEVL35L EVL35L 160 160
42 M52X2.0-6g M52X2.0-6H 50.00 60.00 51.00 56.00 36.00 34.00 42.00 63.00 XEVL42L EVL42L 160 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L1 L2 L3 ØD DRILL ØD1 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g M14X1.5-6H 14.00 17.00 23.00 27.00 4.00 3.00 6.00 31.00 XEVL06S EVL06S 630 630
8 M16X1.5-6g M16X1.5-6H 14.00 19.00 24.00 27.00 5.00 4.00 8.00 32.00 XEVL08S EVL08S 630 630
10 M18X1.5-6g M18X1.5-6H 17.00 22.00 25.00 29.50 7.00 6.00 10.00 34.00 XEVL10S EVL10S 630 630
12 M20X1.5-6g M20X1.5-6H 17.00 24.00 29.00 30.50 8.00 7.00 12.00 38.00 XEVL12S EVL12S 630 630
14 M22X1.5-6g M22X1.5-6H 24.00 27.00 30.00 34.50 10.00 9.00 14.00 40.00 XEVL14S EVL14S 400 400
16 M24X1.5-6g M24X1.5-6H 24.00 30.00 33.00 36.00 12.00 11.00 16.00 43.00 XEVL16S EVL16S 400 400
20 M30X2.0-6g M30X2.0-6H 27.00 36.00 37.00 44.00 16.00 15.00 20.00 48.00 XEVL20S EVL20S 400 400
25 M36X2.0-6g M36X2.0-6H 36.00 46.00 42.00 49.50 20.00 17.00 25.00 54.00 XEVL25S EVL25S 400 400
30 M42X2.0-6g M42X2.0-6H 41.00 50.00 49.00 55.00 25.00 22.00 30.00 62.00 XEVL30S EVL30S 400 400
38 M52X2.0-6g M52X2.0-6H 50.00 60.00 57.00 63.00 32.00 28.00 38.00 72.00 XEVL38S EVL38S 315 315
