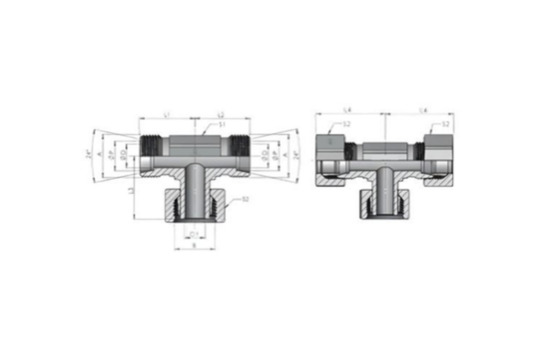

EVT-Standpipe branch tee 24 cone end

EVT-Standpipe branch tee 24 cone end

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L1 L2 L3 ØD DRILL ØD1 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g M12X1.5-6H 12.00 14.00 19.00 26.00 4.00 3.00 6.00 27.00 XEVT06L EVT06L 315 315
8 M14X1.5-6g M14X1.5-6H 14.00 17.00 21.00 27.00 6.00 4.00 8.00 29.00 XEVT08L EVT08L 315 315
10 M16X1.5-6g M16X1.5-6H 14.00 19.00 22.00 28.50 8.00 6.00 10.00 30.00 XEVT10L EVT10L 315 315
12 M18X1.5-6g M18X1.5-6H 17.00 22.00 24.00 29.00 10.00 7.00 12.00 32.00 XEVT12L EVT12L 315 315
15 M22X1.5-6g M22X1.5-6H 19.00 27.00 28.00 32.00 12.00 10.00 15.00 36.00 XEVT15L EVT15L 315 315
18 M26X1.5-6g M26X1.5-6H 24.00 32.00 31.00 35.00 15.00 13.00 18.00 40.00 XEVT18L EVT18L 315 315
22 M30X2.0-6g M30X2.0-6H 27.00 36.00 35.00 38.00 19.00 16.00 22.00 44.00 XEVT22L EVT22L 160 160
28 M36X2.0-6g M36X2.0-6H 36.00 41.00 38.00 41.50 24.00 22.00 28.00 47.00 XEVT28L EVT28L 160 160
35 M45X2.0-6g M45X2.0-6H 41.00 50.00 45.00 51.00 30.00 28.00 35.00 56.00 XEVT35L EVT35L 160 160
42 M52X2.0-6g M52X2.0-6H 50.00 60.00 51.00 56.00 36.00 34.00 42.00 63.00 XEVT42L EVT42L 160 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L1 L2 L3 ØD DRILL ØD1 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g M14X1.5-6H 14.00 17.00 23.00 27.00 4.00 3.00 6.00 31.00 XEVT06S EVT06S 630 630
8 M16X1.5-6g M16X1.5-6H 14.00 19.00 24.00 27.00 5.00 4.00 8.00 32.00 XEVT08S EVT08S 630 630
10 M18X1.5-6g M18X1.5-6H 17.00 22.00 25.00 29.50 7.00 6.00 10.00 34.00 XEVT10S EVT10S 630 630
12 M20X1.5-6g M20X1.5-6H 17.00 24.00 29.00 30.50 8.00 7.00 12.00 38.00 XEVT12S EVT12S 630 630
14 M22X1.5-6g M22X1.5-6H 24.00 27.00 30.00 34.50 10.00 9.00 14.00 40.00 XEVT14S EVT14S 400 400
16 M24X1.5-6g M24X1.5-6H 24.00 30.00 33.00 36.00 12.00 11.00 16.00 43.00 XEVT16S EVT16S 400 400
20 M30X2.0-6g M30X2.0-6H 27.00 36.00 37.00 44.00 16.00 15.00 20.00 48.00 XEVT20S EVT20S 400 400
25 M36X2.0-6g M36X2.0-6H 36.00 46.00 42.00 49.50 20.00 17.00 25.00 54.00 XEVT25S EVT25S 400 400
30 M42X2.0-6g M42X2.0-6H 41.00 50.00 49.00 55.00 25.00 22.00 30.00 62.00 XEVT30S EVT30S 400 400
38 M52X2.0-6g M52X2.0-6H 50.00 60.00 57.00 63.00 32.00 28.00 38.00 72.00 XEVT38S EVT38S 315 315
