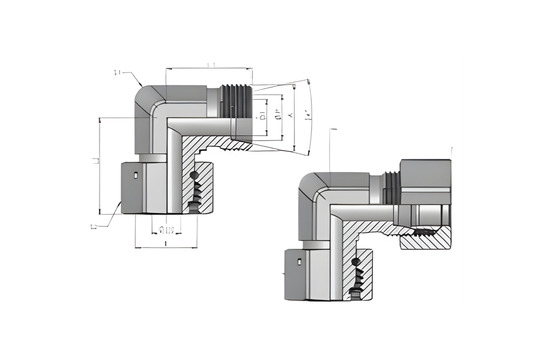

EVW-Standpipe elbow 24 cone end

EVW-Standpipe elbow 24 cone end

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L L1 ØD DRILL ØD1 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g M12X1.5-6H 12.00 14.00 19.00 26.00 4.00 3.00 6.00 27.00 XEVW06L EVW06L 315 315
8 M14X1.5-6g M14X1.5-6H 12.00 17.00 21.00 27.00 6.00 4.00 8.00 29.00 XEVW08L EVW08L 315 315
10 M16X1.5-6g M16X1.5-6H 14.00 19.00 22.00 28.50 8.00 6.00 10.00 30.00 XEVW10L EVW10L 315 315
12 M18X1.5-6g M18X1.5-6H 17.00 22.00 24.00 29.00 10.00 7.00 12.00 32.00 XEVW12L EVW12L 315 315
15 M22X1.5-6g M22X1.5-6H 19.00 27.00 28.00 32.00 12.00 10.00 15.00 36.00 XEVW15L EVW15L 315 315
18 M26X1.5-6g M26X1.5-6H 24.00 32.00 31.00 35.00 15.00 13.00 18.00 40.00 XEVW18L EVW18L 315 315
22 M30X2.0-6g M30X2.0-6H 27.00 36.00 35.00 38.00 19.00 16.00 22.00 44.00 XEVW22L EVW22L 160 160
28 M36X2.0-6g M36X2.0-6H 36.00 41.00 38.00 41.50 24.00 22.00 28.00 47.00 XEVW28L EVW28L 160 160
35 M45X2.0-6g M45X2.0-6H 41.00 50.00 45.00 51.00 30.00 28.00 35.00 56.00 XEVW35L EVW35L 160 160
42 M52X2.0-6g M52X2.0-6H 50.00 60.00 51.00 56.00 36.00 34.00 42.00 63.00 XEVW42L EVW42L 160 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L L1 ØD DRILL ØD1 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g M14X1.5-6H 12.00 17.00 23.00 27.00 4.00 3.00 6.00 31.00 XEVW06S EVW06S 630 630
8 M16X1.5-6g M16X1.5-6H 14.00 19.00 24.00 27.00 5.00 4.00 8.00 32.00 XEVW08S EVW08S 630 630
10 M18X1.5-6g M18X1.5-6H 17.00 22.00 25.00 29.50 7.00 6.00 10.00 34.00 XEVW10S EVW10S 630 630
12 M20X1.5-6g M20X1.5-6H 17.00 24.00 29.00 30.50 8.00 7.00 12.00 38.00 XEVW12S EVW12S 630 630
14 M22X1.5-6g M22X1.5-6H 19.00 27.00 30.00 34.50 10.00 9.00 14.00 40.00 XEVW14S EVW14S 400 400
16 M24X1.5-6g M24X1.5-6H 24.00 30.00 33.00 36.00 12.00 11.00 16.00 43.00 XEVW16S EVW16S 400 400
20 M30X2.0-6g M30X2.0-6H 27.00 36.00 37.00 44.00 16.00 15.00 20.00 48.00 XEVW20S EVW20S 400 400
25 M36X2.0-6g M36X2.0-6H 36.00 46.00 42.00 49.50 20.00 17.00 25.00 54.00 XEVW25S EVW25S 400 400
30 M42X2.0-6g M42X2.0-6H 41.00 50.00 49.00 55.00 25.00 22.00 30.00 62.00 XEVW30S EVW30S 400 400
38 M52X2.0-6g M52X2.0-6H 50.00 60.00 57.00 63.00 32.00 28.00 38.00 72.00 XEVW38S EVW38S 315 315
