Single Ferrule Fittings

All Category

For Enquiry

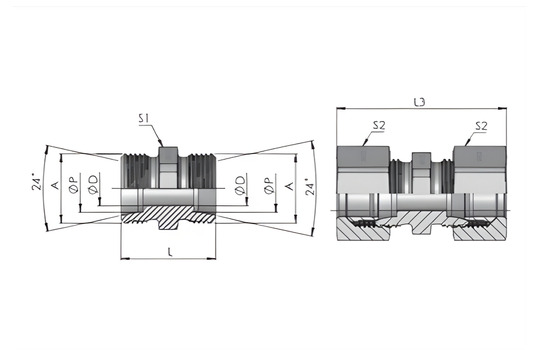

G- Union 24° Cone end

G- Union 24° Cone end

L SERIES

Tube O.D. A THREAD S1 Hex S2 Hex L Length ØD DRILL ØP L3 (REF) Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g 12.00 14.00 24.00 4.00 6.00 39.00 XG06L G06L 500 330
8 M14X1.5-6g 14.00 17.00 25.00 6.00 8.00 40.00 XG08L G08L 500 330
10 M16X1.5-6g 17.00 19.00 27.00 8.00 10.00 42.00 XG10L G10L 500 330
12 M18X1.5-6g 19.00 22.00 28.00 10.00 12.00 43.00 XG12L G12L 400 330
15 M22X1.5-6g 24.00 27.00 30.00 12.00 15.00 46.00 XG15L G15L 400 330
18 M26X1.5-6g 27.00 32.00 31.00 15.00 18.00 48.00 XG18L G18L 400 330
22 M30X2.0-6g 32.00 36.00 35.00 19.00 22.00 52.00 XG22L G22L 250 160
28 M36X2.0-6g 41.00 41.00 36.00 24.00 28.00 54.00 XG28L G28L 250 160
35 M45X2.0-6g 46.00 50.00 41.00 30.00 35.00 63.00 XG35L G35L 250 160
42 M52X2.0-6g 55.00 60.00 43.00 36.00 42.00 66.00 XG42L G42L 250 160

S SERIES

Tube O.D. A THREAD S1 Hex S2 Hex L Length ØD DRILL ØP L3 (REF) Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g 14.00 17.00 30.00 4.00 6.00 45.00 XG06S G06S 800 630
8 M16X1.5-6g 17.00 19.00 32.00 5.00 8.00 47.00 XG08S G08S 800 630
10 M18X1.5-6g 19.00 22.00 32.00 7.00 10.00 49.00 XG10S G10S 800 630
12 M20X1.5-6g 22.00 24.00 34.00 8.00 12.00 51.00 XG12S G12S 630 630
16 M24X1.5-6g 27.00 30.00 38.00 12.00 16.00 57.00 XG16S G16S 630 410
20 M30X2.0-6g 32.00 36.00 44.00 16.00 20.00 66.00 XG20S G20S 420 410
25 M36X2.0-6g 41.00 46.00 50.00 20.00 25.00 74.00 XG25S G25S 420 410
30 M42X2.0-6g 46.00 50.00 54.00 25.00 30.00 80.00 XG30S G30S 420 410
38 M52X2.0-6g 55.00 60.00 61.00 32.00 38.00 90.00 XG38S G38S 420 320
