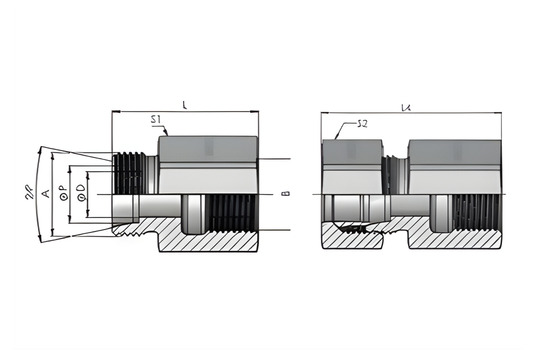

GAI-R-Female connector Female BSPP thread
L SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD DRILL |
ØP |
L4 |
Body Part Number |
Assembly Part Number |
Torque N-m |
Working pressure in Bar |
| 6 |
M12X1.5-6g |
G1/8"-28-BSPP-A |
14.00 |
14.00 |
26.00 |
4.00 |
6.00 |
34.00 |
XGAI06LR |
GAI06LR |
13-15 |
500 |
| 8 |
M14X1.5-6g |
G1/4"-19-BSPP-A |
19.00 |
17.00 |
31.00 |
6.00 |
8.00 |
39.00 |
XGAI08LR |
GAI08LR |
15-18 |
500 |
| 10 |
M16X1.5-6g |
G1/4"-19-BSPP-A |
19.00 |
19.00 |
32.00 |
6.00 |
10.00 |
40.00 |
XGAI10LR |
GAI10LR |
25-28 |
500 |
| 12 |
M18X1.5-6g |
G3/8"-19-BSPP-A |
24.00 |
22.00 |
33.00 |
9.00 |
12.00 |
41.00 |
XGAI12LR |
GAI12LR |
27-30 |
400 |
| 15 |
M22X1.5-6g |
G1/2"-14-BSPP-A |
27.00 |
27.00 |
38.00 |
11.00 |
15.00 |
46.00 |
XGAI15LR |
GAI15LR |
50-60 |
400 |
| 18 |
M26X1.5-6g |
G1/2"-14-BSPP-A |
27.00 |
32.00 |
38.00 |
14.00 |
18.00 |
47.00 |
XGAI18LR |
GAI18LR |
60-75 |
400 |
| 22 |
M30X2.0-6g |
G3/4"-14-BSPP-A |
36.00 |
36.00 |
43.00 |
18.00 |
22.00 |
52.00 |
XGAI22LR |
GAI22LR |
85-105 |
250 |
| 28 |
M36X2.0-6g |
G1"-11-BSPP-A |
41.00 |
41.00 |
45.50 |
23.00 |
28.00 |
55.00 |
XGAI28LR |
GAI28LR |
120-140 |
250 |
| 35 |
M45X2.0-6g |
G1-1/4"-11-BSPP-A |
55.00 |
50.00 |
51.50 |
30.00 |
35.00 |
63.00 |
XGAI35LR |
GAI35LR |
170-190 |
250 |
| 42 |
M52X2.0-6g |
G1-1/2"-11-BSPP-A |
60.00 |
60.00 |
53.50 |
36.00 |
42.00 |
65.00 |
XGAI42LR |
GAI42LR |
190-230 |
250 |
S SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD DRILL |
ØP |
L4 |
Body Part Number |
Assembly Part Number |
Torque N-m |
Working pressure in Bar |
| 6 |
M14X1.5-6g |
G1/4"-19-BSPP-A |
19.00 |
17.00 |
33.00 |
4.00 |
6.00 |
41.00 |
XGAI06SR |
GAI06SR |
14-16 |
800 |
| 8 |
M16X1.5-6g |
G1/4"-19-BSPP-A |
19.00 |
19.00 |
33.00 |
5.00 |
8.00 |
41.00 |
XGAI08SR |
GAI08SR |
25-28 |
800 |
| 10 |
M18X1.5-6g |
G3/8"-19-BSPP-A |
24.00 |
22.00 |
34.00 |
7.00 |
10.00 |
43.00 |
XGAI10SR |
GAI10SR |
27-30 |
800 |
| 12 |
M20X1.5-6g |
G3/8"-19-BSPP-A |
24.00 |
24.00 |
34.00 |
8.00 |
12.0 |
43.00 |
XGAI12SR |
GAI12SR |
43-54 |
630 |
| 16 |
M24X1.5-6g |
G1/2"-14-BSPP-A |
30.00 |
30.00 |
40.00 |
12.00 |
16.00 |
50.00 |
XGAI16SR |
GAI16SR |
60-75 |
630 |
| 20 |
M30X2.0-6g |
G3/4"-14-BSPP-A |
36.00 |
36.00 |
45.00 |
16.00 |
20.00 |
56.00 |
XGAI20SR |
GAI20SR |
90-110 |
420 |
| 25 |
M36X2.0-6g |
G1"-11-BSPP-A |
41.00 |
46.00 |
49.50 |
20.00 |
25.00 |
62.00 |
XGAI25SR |
GAI25SR |
125-145 |
420 |
| 30 |
M42X2.0-6g |
G1-1/4"-11-BSPP-A |
55.00 |
50.00 |
55.50 |
25.00 |
30.00 |
69.00 |
XGAI30SR |
GAI30SR |
170-190 |
420 |
| 38 |
M52X2.0-6g |
G1-1/2"-11-BSPP-A |
60.00 |
60.00 |
59.50 |
32.00 |
38.00 |
74.00 |
XGAI38SR |
GAI38SR |
200-245 |
420 |
