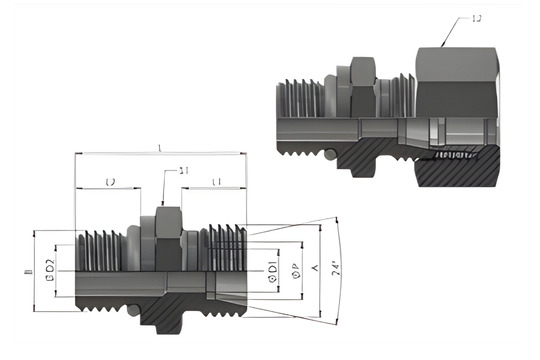

GE-UNF/UN Male stud connector Male UNF/UN thread

GE-UNF/UN Male stud connector Male UNF/UN thread

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L ØD1 DRILL ØD2 DRILL ØP L1 L2 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
8 M14X1.5-6g 7/16"-20UNF-2A 17.00 17.00 26.00 4.50 4.50 8.00 10.00 9.00 XGE08L-7/16"-20UNF GE08L-7/16"-20UNF 315 330
8 M14X1.5-6g 9/16"-18UNF-2A 19.00 17.00 30.00 6.00 6.00 8.00 10.00 9.90 XGE08L-9/16"-18UNF GE08L-9/16"-18UNF 315 330
8 M14X1.5-6g 3/4"-16UNF-2A 24.00 17.00 32.00 6.00 10.00 8.00 10.00 11.00 XGE08L-3/4"-16UNF GE08L-3/4"-16UNF 315 330
10 M16X1.5-6g 7/16"-20UNF-2A 17.00 19.00 27.30 7.00 5.00 10.00 11.00 9.14 XGE10L-7/16"-20UNF GE10L-7/16"-20UNF 315 330
10 M16X1.5-6g 9/16"-18UNF-2A 19.00 19.00 28.50 7.00 7.00 10.00 11.00 9.93 XGE10L-9/16"-18UNF GE10L-9/16"-18UNF 315 330
10 M16X1.5-6g 7/8"-14UNF-2A 27.00 19.00 38.60 7.00 12.70 10.00 11.00 12.70 XGE10L-7/8"-14UNF GE10L-7/8"-14UNF 315 330
12 M18X1.5-6g 9/16"-18UNF-2A 19.00 22.00 29.50 5.00 5.00 12.00 11.00 9.93 XGE12L-9/16"-18UNF GE12L-9/16"-18UNF 315 330
12 M18X1.5-6g 3/4"-16UNF-2A 24.00 22.00 31.00 10.00 10.00 12.00 11.00 11.10 XGE12L-3/4"-16UNF GE12L-3/4"-16UNF 315 330
12 M18X1.5-6g 7/8"-14UNF-2A 27.00 22.00 33.00 9.00 9.00 12.00 11.00 12.70 XGE12L-7/8"-14UNF GE12L-7/8"-14UNF 315 330
15 M22X1.5-6g 3/4"-16UNF-2A 24.00 27.00 32.00 11.00 11.00 15.00 12.00 11.00 XGE15L-3/4"-16UNF GE15L-3/4"-16UNF 315 330
15 M22X1.5-6g 7/8"-14UNF-2A 27.00 27.00 34.00 10.00 10.00 15.00 12.00 12.70 XGE15L-7/8"-14UNF GE15L-7/8"-14UNF 315 330
18 M26X1.5-6g 3/4"-16UNF-2A 27.00 32.00 32.50 14.00 10.70 18.00 12.00 11.13 XGE18L-3/4"-16UNF GE18L-3/4"-16UNF 315 330
18 M26X1.5-6g 7/8"-14UNF-2A 27.00 32.00 35.00 14.00 14.00 18.00 12.00 12.70 XGE18L-7/8"-14UNF GE18L-7/8"-14UNF 315 330
18 M26X1.5-6g 1-1/16"-12UN-2A 32.00 32.00 44.00 14.00 15.50 18.00 12.00 18.50 XGE18L-1-1/16"-12UN GE18L-1-1/16"-12UN 315 330
22 M30X2.0-6g 7/8"-14UNF-2A 32.00 36.00 37.00 18.00 12.00 22.00 14.00 12.70 XGE22L-7/8"-14UNF GE22L-7/8"-14UNF 160 160
22 M30X2.0-6g 1-1/16"-12UN-2A 32.00 36.00 40.00 17.00 17.00 22.00 14.00 15.00 XGE22L-1-1/16"-12UN GE22L-1-1/16"-12UN 160 160
28 M36X2.0-6g 1-1/16"-12UN-2A 41.00 41.00 40.00 23.00 23.00 28.00 14.00 15.00 XGE28L-1-1/16"-12UN GE28L-1-1/16"-12UN 160 160
28 M36X2.0-6g 1-5/16"-12UN-2A 41.00 41.00 40.00 23.00 23.00 28.00 14.00 15.00 XGE28L-1-5/16"-12UN GE28L-1-5/16"-12UN 160 160
35 M45X2.0-6g 1-5/16"-12UN-2A 46.00 50.00 43.00 23.00 23.00 35.00 16.00 15.10 XGE35L-1-5/16"-12UN GE35L-1-5/16"-12UN 160 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L ØD1 DRILL ØD2 DRILL ØP L1 L2 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
8 M16X1.5-6g 9/16"-18UNF-2A 19.00 19.00 32.00 5.00 5.00 8.00 12.00 9.93 XGE08S-9/16"-18UNF GE08S-9/16"-18UNF 630 630
8 M16X1.5-6g 3/4"-16UNF-2A 24.00 19.00 35.00 5.00 5.00 8.00 12.00 11.13 XGE08S-3/4"-16UNF GE08S-3/4"-16UNF 630 630
10 M18X1.5-6g 9/16"-18UNF-2A 19.00 22.00 32.00 6.00 6.00 10.00 12.00 12.00 XGE10S-9/16"-18UNF GE10S-9/16"-18UNF 630 630
10 M18X1.5-6g 3/4"-16UNF-2A 24.00 22.00 34.13 7.00 10.00 10.00 12.00 11.13 XGE10S-3/4"-16UNF GE10S-3/4"-16UNF 630 630
12 M20X1.5-6g 9/16"-18UNF-2A 22.00 24.00 32.00 7.50 7.50 12.00 12.00 9.93 XGE12S-9/16"-18UNF GE12S-9/16"-18UNF 630 630
12 M20X1.5-6g 3/4"-16UNF-2A 24.00 24.00 36.00 8.00 8.00 12.00 12.00 11.13 XGE12S-3/4"-16UNF GE12S-3/4"-16UNF 630 630
12 M20X1.5-6g 7/8"-14UNF-2A 27.00 24.00 38.50 8.00 8.00 12.00 12.00 12.70 XGE12S-7/8"-14UNF GE12S-7/8"-14UNF 630 630
16 M24X1.5-6g 3/4"-16UNF-2A 27.00 30.00 35.00 12.00 10.00 16.00 14.00 11.13 XGE16S-3/4"-16UNF GE16S-3/4"-16UNF 400 410
16 M24X1.5-6g 7/8"-14UNF-2A 24.00 30.00 40.00 12.00 12.00 16.00 14.00 16.00 XGE16S-7/8"-14UNF GE16S-7/8"-14UNF 400 410
16 M24X1.5-6g 1-1/16"-12UN-2A 32.00 30.00 46.00 12.00 15.50 16.00 14.00 18.50 XGE16S-1-1/16"-12UN GE16S-1-1/16"-12UN 400
20 M30X2.0-6g 3/4"-16UNF-2A 32.00 36.00 42.00 10.00 10.00 20.00 16.00 14.00 XGE20S-3/4"-16UNF GE20S-3/4"-16UNF 400 410
20 M30X2.0-6g 7/8"-14UNF-2A 32.00 36.00 44.00 16.00 12.00 20.00 16.00 12.70 XGE20S-7/8"-14UNF GE20S-7/8"-14UNF 400 410
20 M30X2.0-6g 1-1/16"-12UN-2A 32.00 36.00 47.00 16.00 16.60 20.00 16.00 15.09 XGE20S-1-1/16"-12UN GE20S-1-1/16"-12UN 400 410
20 M30X2.0-6g 1-5/16"-12UN-2A 41.00 36.00 48.80 16.00 22.20 20.00 16.00 15.09 XGE20S-1-5/16"-12UN GE20S-1-5/16"-12UN 400 410
25 M36X2.0-6g 1-1/16"-12UN-2A 36.00 46.00 50.00 20.00 15.50 25.00 18.00 18.50 XGE25S-1-1/16"-12UN GE25S-1-1/16"-12UN 400 410
25 M36X2.0-6g 1-5/16"-12UN-2A 41.00 46.00 50.00 20.00 20.00 25.00 18.00 15.00 XGE25S-1-5/16"-12UN GE25S-1-5/16"-12UN 400 410
30 M42X2.0-6g 1-1/16"-12UN-2A 46.00 50.00 51.90 25.00 16.60 30.00 20.00 15.09 XGE30S-1-1/16"-12UN GE30S-1-1/16"-12UN 400 410
30 M42X2.0-6g 1-5/16"-12UN-2A 46.00 50.00 53.00 25.00 20.00 30.00 20.00 15.09 XGE30S-1-5/16"-12UN GE30S-1-5/16"-12UN 400 410
30 M42X2.0-6g 1-5/8"-12UN-2A 50.00 50.00 52.00 24.00 24.00 30.00 20.00 18.50 XGE30S-1-5/8"-12UN GE30S-1-5/8"-12UN 400 410
38 M52X2.0-6g 1-5/8"-12UN-2A 55.00 60.00 57.00 24.00 24.00 38.00 20.00 18.50 XGE38S-1-5/8"-12UN GE38S-1-5/8"-12UN 315 320
