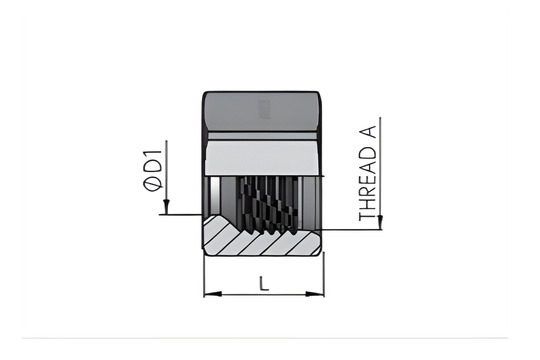

N-NUT 24 Cone end 0020

N-NUT 24 Cone end 0020

L SERIES

Tube O.D. HEX ØD1 L Length A THREAD Part Number Working Pressure (Bar) CS Working Pressure (Bar) SS
6 14.00 6.00 14.50 M12X1.5-6H XN06L 500 330
8 17.00 8.00 14.50 M14X1.5-6H XN08L 500 330
10 19.00 10.00 15.50 M16X1.5-6H XN10L 500 330
12 22.00 12.00 15.50 M18X1.5-6H XN12L 400 330
15 27.00 15.00 17.00 M22X1.5-6H XN15L 400 330
18 32.00 18.00 18.00 M26X1.5-6H XN18L 400 330
22 36.00 22.00 20.00 M30X2.0-6H XN22L 250 160
28 41.00 28.00 21.00 M36X2.0-6H XN28L 250 160
35 50.00 35.00 24.00 M45X2.0-6H XN35L 250 160
42 60.00 42.00 24.00 M52X2.0-6H XN42L 250 160

NUT S SERIES

Tube O.D. HEX ØD1 L Length A THREAD Part Number Working Pressure (Bar) CS Working Pressure (Bar) SS
6 17.00 6.00 16.50 M14X1.5-6H XN06S 800 630
8 19.00 8.00 16.50 M16X1.5-6H XN08S 800 630
10 22.00 10.00 17.50 M18X1.5-6H XN10S 800 630
12 24.00 12.00 17.50 M20X1.5-6H XN12S 630 630
14 27.00 14.00 20.50 M22X1.5-6H XN14S 630 630
16 30.00 16.00 20.50 M24X1.5-6H XN16S 630 410
20 36.00 20.00 24.00 M30X2.0-6H XN20S 420 410
25 46.00 25.00 27.00 M36X2.0-6H XN25S 420 410
30 50.00 30.00 29.00 M42X2.0-6H XN30S 420 410
38 60.00 38.00 32.50 M52X2.0-6H XN38S 420 320
