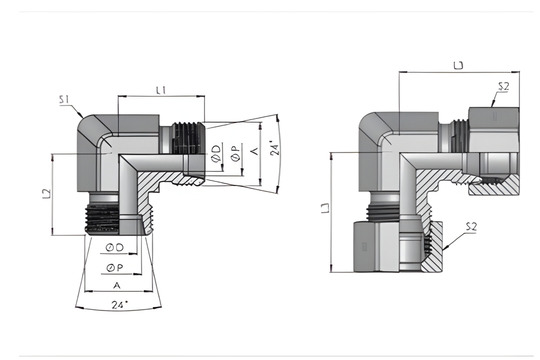

W-Equal Elbow 24° Cone end

W-Equal Elbow 24° Cone end

L SERIES

Tube O.D. A THREAD S1 Hex S2 Hex L1 L2 ØD DRILL ØP L3 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g 12.00 14.00 19.00 19.00 4.00 6.00 27.00 XW06L W06L 500 330
8 M14X1.5-6g 14.00 17.00 21.00 21.00 6.00 8.00 29.00 XW08L W08L 500 330
10 M16X1.5-6g 14.00 19.00 22.00 22.00 8.00 10.00 30.00 XW10L W10L 500 330
12 M18X1.5-6g 17.00 22.00 24.00 24.00 10.00 12.00 32.00 XW12L W12L 400 330
15 M22X1.5-6g 24.00 27.00 28.00 28.00 12.00 15.00 36.00 XW15L W15L 400 330
18 M26X1.5-6g 24.00 32.00 31.00 31.00 15.00 18.00 40.00 XW18L W18L 400 330
22 M30X2.0-6g 27.00 36.00 35.00 35.00 19.00 22.00 44.00 XW22L W22L 250 160
28 M36X2.0-6g 36.00 41.00 38.00 38.00 24.00 28.00 47.00 XW28L W28L 250 160
35 M45X2.0-6g 41.00 50.00 45.00 45.00 30.00 35.00 56.00 XW35L W35L 250 160
42 M52X2.0-6g 50.00 60.00 51.00 51.00 36.00 42.00 63.00 XW42L W42L 250 160

S SERIES

Tube O.D. A THREAD S1 Hex S2 Hex L1 L2 ØD DRILL ØP L3 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g 14.00 17.00 23.00 23.00 4.00 6.00 31.00 XW06S W06S 800 630
8 M16X1.5-6g 14.00 19.00 24.00 24.00 5.00 8.00 32.00 XW08S W08S 800 630
10 M18X1.5-6g 17.00 22.00 25.00 25.00 7.00 10.00 34.00 XW10S W10S 800 630
12 M20X1.5-6g 17.00 24.00 29.00 29.00 8.00 12.00 38.00 XW12S W12S 630 630
14 M22X1.5-6g 24.00 27.00 30.00 30.00 10.00 14.00 40.00 XW14S W14S 630 410
16 M24X1.5-6g 24.00 30.00 33.00 33.00 12.00 16.00 43.00 XW16S W16S 630 410
20 M30X2.0-6g 27.00 36.00 37.00 37.00 16.00 20.00 48.00 XW20S W20S 420 410
25 M36X2.0-6g 36.00 46.00 42.00 42.00 20.00 25.00 54.00 XW25S W25S 420 410
30 M42X2.0-6g 41.00 50.00 49.00 49.00 25.00 30.00 62.00 XW30S W30S 420 410
38 M52X2.0-6g 50.00 60.00 57.00 57.00 32.00 38.00 72.00 XW38S W38S 420 320
