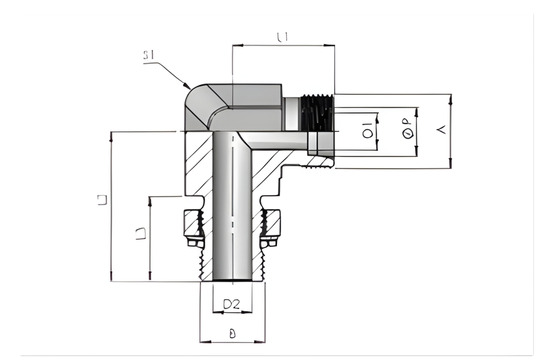

WEE-R-Adjustable locknut elbow 24 cone end

WEE-R-Adjustable locknut elbow 24 cone end

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex L1 L2 L3 MIN ØD1 DRILL ØD2 DRILL ØP B11 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g 1/8"-28BSPP 14.00 21.00 26.00 16.00 4.00 4.50 6.00 XWEE06LR WEE06LR 315 315
8 M14X1.5-6g 1/4"-19BSPP 14.00 23.00 32.00 22.40 6.00 7.50 8.00 XWEE08LR WEE08LR 315 315
10 M16X1.5-6g 1/4"-19BSPP 19.00 24.00 34.00 20.00 8.00 7.50 10.00 XWEE10LR WEE10LR 315 315
12 M18X1.5-6g 3/8"-19BSPP 19.00 26.00 37.00 22.40 10.00 9.90 12.00 XWEE12LR WEE12LR 250 250
15 M22X1.5-6g 1/2"-14BSPP 22.00 28.00 43.00 27.90 12.00 12.50 15.00 XWEE15LR WEE15LR 250 250
18 M26X1.5-6g 1/2"-14BSPP 27.00 31.00 49.00 26.10 15.00 12.50 18.00 XWEE18LR WEE18LR 250 250
22 M30X2.0-6g 3/4"-14BSPP 33.00 35.00 49.00 27.90 18.00 15.50 22.00 XWEE22LR WEE22LR 160 160
28 M36X2.0-6g 1"-11BSPP 36.00 38.00 59.00 34.20 24.00 21.50 28.00 XWEE28LR WEE28LR 160 160
35 M45X2.0-6g 1-1/4"-11BSPP 50.00 48.00 65.00 30.00 30.00 27.50 35.00 XWEE35LR WEE35LR 160 160
42 M52X2.0-6g 1-1/2"-11BSPP 50.00 49.00 67.00 30.00 36.00 33.00 42.00 XWEE42LR WEE42LR 160 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex L1 L2 L3 MIN ØD1 DRILL ØD2 DRILL ØP B11 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g 1/4"-19BSPP 14.30 22.00 32.00 22.40 4.00 7.50 6.00 XWEE06SR WEE06SR 315 315
8 M16X1.5-6g 1/4"-19BSPP 19.00 24.00 36.00 20.00 5.00 7.50 8.00 XWEE08SR WEE08SR 315 315
10 M18X1.5-6g 3/8"-19BSPP 19.00 25.00 38.00 22.40 7.00 10.00 10.00 XWEE10SR WEE10SR 250 250
12 M20X1.5-6g 3/8"-19BSPP 22.00 29.00 39.00 24.50 8.00 9.90 12.00 XWEE12SR WEE12SR 250 250
16 M24X1.5-6g 1/2"-14BSPP 27.00 33.00 49.00 27.90 12.00 12.30 16.00 XWEE16SR WEE16SR 250 250
20 M30X2.0-6g 3/4"-14BSPP 30.00 38.00 51.00 26.10 16.00 15.50 20.00 XWEE20SR WEE20SR 250 250
25 M36X2.0-6g 1"-11BSPP 36.00 42.00 58.00 30.00 20.00 21.50 25.00 XWEE25SR WEE25SR 250 250
30 M42X2.0-6g 1-1/4"-11BSPP 41.00 49.00 55.00 30.00 25.00 27.50 30.00 XWEE30SR WEE30SR 160 160
38 M52X2.0-6g 1-1/2"-11BSPP 50.00 50.00 66.00 34.20 32.00 33.00 38.00 XWEE38SR WEE38SR 160 160
